Gyproc Thermaline Basic Insulated Plasterboards

Gyproc Thermaline Basic Insulated Plasterboards

Regular price £36.36
Regular price Sale price £36.36
Sale Sold out

Price excludes VAT

Shipping calculated at checkout.

**Minimum order value of £150**

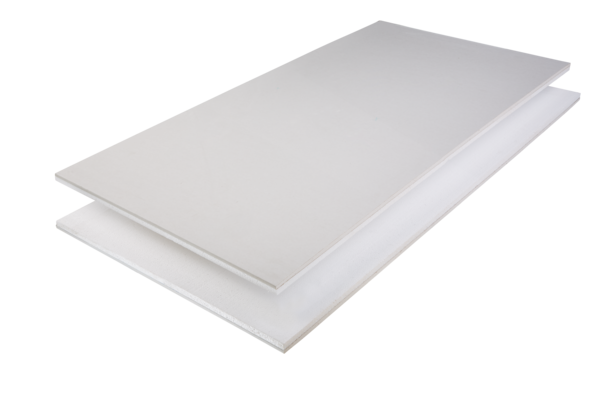

Gypsum plasterboard bonded to an expanded polystyrene foam insulate for a basic level of thermal insulation.

9.5mm Gyproc WallBoard factory-bonded to an expanded polystyrene insulant that is both CFC and HCFC-free, meaning zero ODP (Ozone Depletion Potential), and less than 5 GWP (Global Warming Potential). Designed to be used in both refurbishment and new build for walls, ceilings and reveals where a basic level of thermal insulation is required to reduce heat loss from buildings.

Have you seen the rest of the Gyproc Thermaline range?

Product Summary

As the name suggests thermaline basic is the simplest of the laminated ( stuck to plasterboard) range of thermal plasterboard products.

It is simply expanded polystyrene stuck to 9.5mm plasterboard. The board is used as a cheap way of gaining insulation. It does not however, perform nearly as well as other boards in the Thermaline range.

  • Faced with ivory colored Gyproc WallBoard
  • Backed with white coloured expanded polystyrene
  • Available in tapered edge only
  • Complies with EN 13950
  • Thermal Conductivity: WallBoard 0.19W/mK
  • Thermal Conductivity: Basic expanded polystyrene 0.040W/mK

Gyproc Thermaline Basic 22mm



Product Application

Technical Spec

  • 22mm Board

Width

Length

Weight

Edge

Thermal resistance

mm

mm

kg/m²

T/S

m²K/W

1200

2400

6.5

T

0.35

  • 30mm Board

Width

Length

Weight

Edge

Thermal resistance

mm

mm

kg/m²

T/S

m²K/W

1200

2400

7.2

T

0.55

  • 40mm Board

Width

Length

Weight

Edge

Thermal resistance

mm

mm

kg/m²

T/S

m²K/W

1200

2400

8.1

T

0.80




Installation Instructions

General

It is important to observe appropriate health and safety legislation when working on site, i.e. personal protective clothing and equipment, etc. The following notes are intended as general guidance only. In practice, consideration must be given to design criteria requiring specific project solutions

Thermaline Basic Cutting

This product may be cut using a plasterboard saw. Holes for switch or socket boxes should be cut out before the boards are fixed using a utility saw or sharp knife. When cutting boards, power and hand tools should be used
with care and in accordance with the manufacturers’ recommendations. Power tools should only be used by people who have been instructed and trained to use them safely. Appropriate personal protective equipment should be used.

Thermaline Basic Fixing

Fix boards with decorative side out to receive joint treatment or a skim plaster finish. Lightly butt boards together. Never force boards into position. Install fixings not closer than 13mm from cut edges and 10mm from bound edges. Position cut edges to internal angles whenever possible, removing paper burrs with fine sandpaper. Stagger horizontal and vertical board joints between layers by a minimum of 600mm. Locate boards to the centre line of framing where this supports board edges or ends
