Gyproc Thermaline Plus Insulated Plasterboards

Name: Gyproc Thermaline Plus Insulated Plasterboards
Brand: Gyproc
SKU: ZGRTLP27
Price: 52.44 GBP
Availability: InStock

Gyproc Thermaline Plus Insulated Plasterboards

£52.44

Sale Sold out

Price excludes VAT

Shipping calculated at checkout.

Product variants

Quantity

**Minimum order value of £300 applies, excluding taxes**

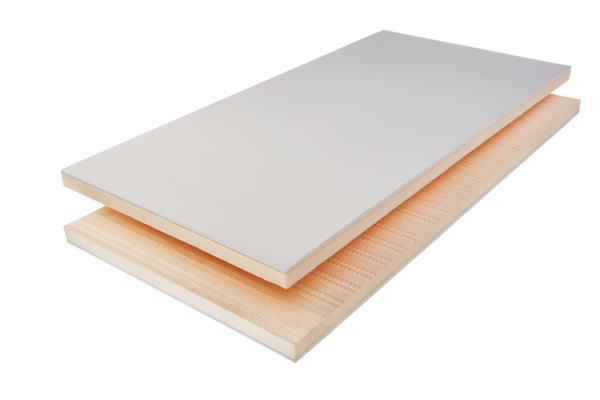

Gypsum plasterboard bonded to an extruded polystyrene foam insulant providing a vapour control layer for an intermediate level of thermal insulation.

9.5mm Gyproc WallBoard factory-bonded to an extruded polystyrene insulant that is both CFC and HCFC-free, meaning zero ODP (Ozone Depletion Potential), and less than 5 GWP (Global Warming Potential). The closed cell structure of the foam provides integral vapour control. Designed to be used in both refurbishment and new build for walls, ceilings and reveals where a medium level of thermal insulation is required to reduce heat loss from buildings.

Have you seen the rest of the Gyproc Thermaline range?

Product Summary

Gyrproc thermaline plus is a thermal laminate plasterboard consisting of extruded polystyrene stuck to to 9.5mm plasterboard ( Except 48mm which has 12.5mm plasterboard). It is has a medium level of performance of the boards in the thermaline range. Comparing the Thermaline Basic, Plus and Super board on a like for like basis we see that the thermal resistance of the 40mm Basic is 0.8m ²K/W, versus 1.05 for the Thermaline Plus 40mm and 1.49 ²K/W for the Thermaline Super 40mm.

Faced with ivory coloured Gyproc Wallboards
Backed with orange coloured extruded polystyrene
Available in tapered edge only
Complies with EN 13950
Thermal Conductivity: Wallboard 0.19W/mK
Thermal Conductivity: Plus extruded polystyrene 0.030W/mK

Technical Spec

27mm Board

Width	Length	Weight	Edge	Thermal resistance
mm	mm	kg/m²	T/S	m²K/W
1200	2400	6.5	T	0.63

35mm Board

Width	Length	Weight	Edge	Thermal resistance
mm	mm	kg/m²	T/S	m²K/W
1200	2400	7.2	T	0.88

40mm Board

Width	Length	Weight	Edge	Thermal resistance
mm	mm	kg/m²	T/S	m²K/W
1200	2400	7.7	T	1.07

48mm Board (faced with 12.5mm Gyproc Wallboard)

Width	Length	Weight	Edge	Thermal resistance
mm	mm	kg/m²	T/S	m²K/W
1200	2400	8.1	T	1.25

Gyproc Thermaline Plus 27mm

Product Application

Installation Instructions

It is important to observe appropriate health and safety legislation when working on site, i.e. personal protective clothing and equipment, etc. The following notes are intended as general guidance only. In practice, consideration must be given to design criteria requiring specific project solutions

Thermaline Basic Fixing

This product can be screwed or glued.

If you are wishing to glue it to the wall it should be glued with dry wall adhesive. If you are choosing this route you should use at least two mechanical fixings to hold it in place.

Gyproc Thermaline Super Cutting

This product may be cut using a plasterboard saw. Holes for switch or socket boxes should be cut out before the boards are fixed using a utility saw or sharp knife. When cutting boards, power and hand tools should be used with care and in accordance with the manufacturers’ recommendations. Power tools should only be used by people who have been instructed and trained to use them

safely. Appropriate personal protective equipment should be used.

Gyproc Thermaline Super Fixing

Fix boards with decorative side out to receive joint treatment or a skim plaster finish. Lightly butt boards together. Never force boards into position. Install fixings not closer than 13mm from cut edges and 10mm from bound edges. Position cut edges to internal angles whenever possible, removing paper burrs with fine sandpaper. Stagger horizontal and vertical board joints between layers by a minimum of 600mm. Locate boards to the centre line of framing where this supports board edges or ends
